Product Introduction

   The LX-A40 CPT atomic clock is a miniature atomic clock based on the principle of coherent population trapping, which outputs an accurate and stable 10MHz standard frequency signal and 1PPS pulse signal. The installation size of the LX-A40 CPT atomic clock is compatible with the SA.45s chip clock, and it can work in time and frequency boards and modules, and has a UART frequency calibration interface and an external electric adjustment interface.

Features

1. Compatible with SA.45s, miniaturized

2. UART serial communication

3. External second synchronization and 1PPS output

4.10MHz, 16.384MHz, 20MHz, 24.576MHz optional

Application

1.Military and Civilian Communication Systems

2.Time-frequency synchronization modules and boards

3.Power, telecommunications

4.Navigation and positioning

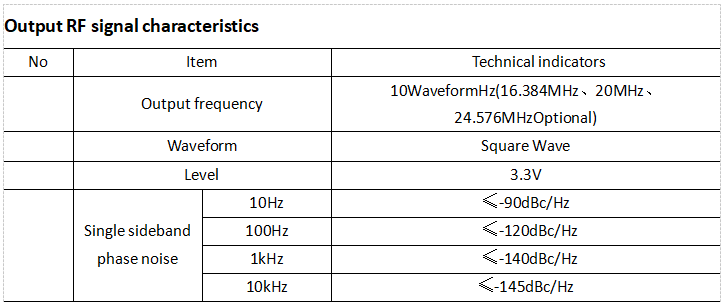

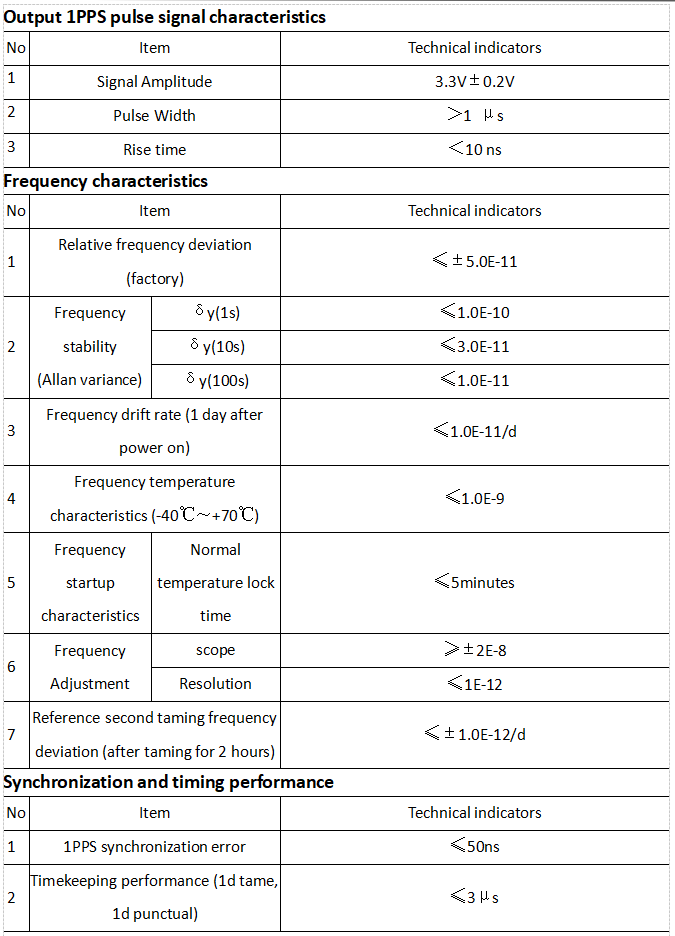

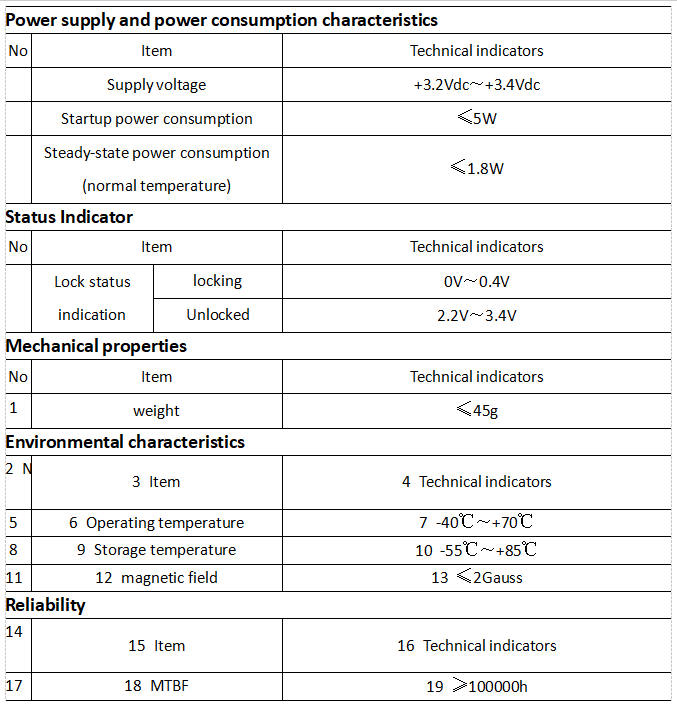

Technical indicators

Dimensions and interfaces

The overall dimensions are (41±0.5) mm×(35±0.5) mm×(12±0.5) mm.See the figure below for specific dimensions.

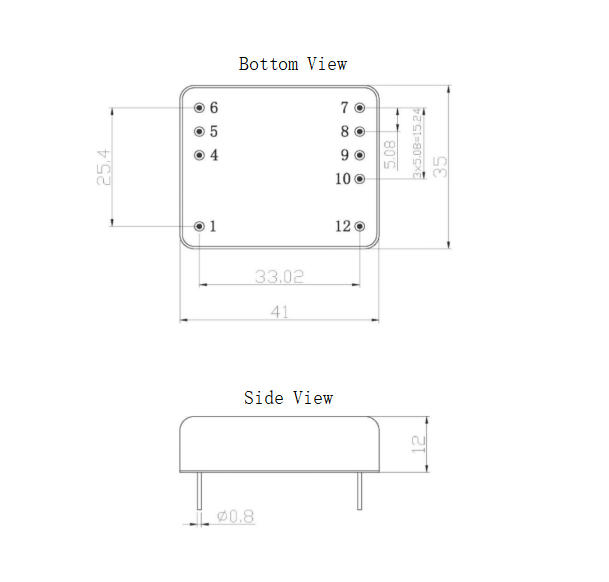

Figure 1 Dimensions of the LX-A40 CPT atomic clock (unit: mm)

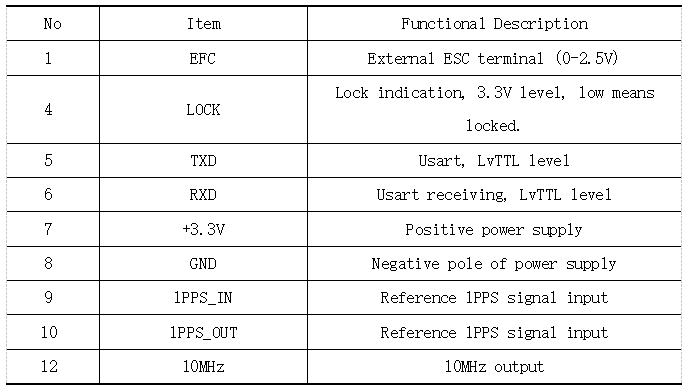

There are 9 insulators for the power supply, status, and control interfaces. The specific pin definitions are shown in Table 1.

Table 1 Power, status, and control interface definitions
